Standard Wiring Harness

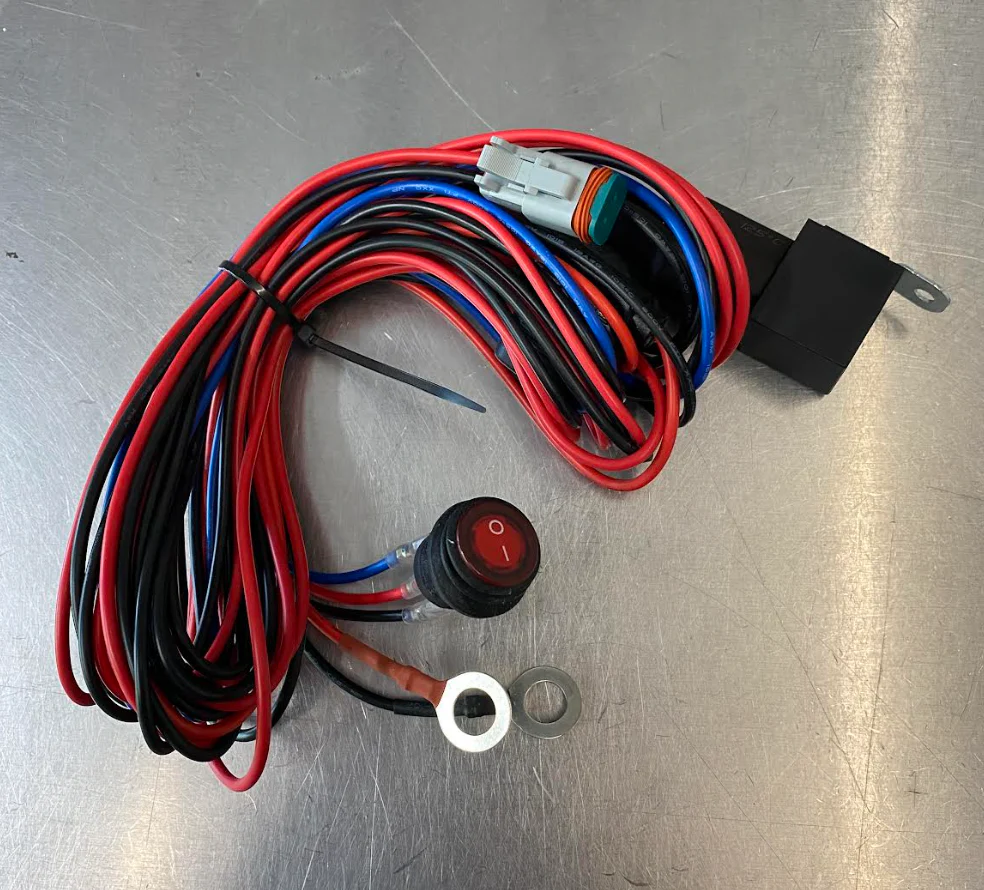

Our Standard Wiring Harness for light bars includes a water-resistant red rocker switch, in-line fuse & relay, positive/negative battery terminal hookups, and waterproof Deutsch connector to make for an easy plug and play install.
The harness extends about 12 ft total. There is a 4 ft extension from the relay to the battery terminal hookups, another 4 ft extension from the relay to the switch, and an 8 ft extension from the relay to the Deutsch connector. Keep in mind each light has some wire length to play with too. Pods-30'' light bars have a 1.5 ft wire to the connector and a smaller Deutsch plug with 14 gauge wire. Our 40'' and 50'' light bars have 4 ft of wire to the connector and use a larger Deutsch plug with 12 gauge wire.
Compatible with:
Pod Series - (not wrapped in thermal sheathing)
Single Row Series
Double Row Series
Marine Series
