In Stock: 5 Watt - Ships Next Business Day!

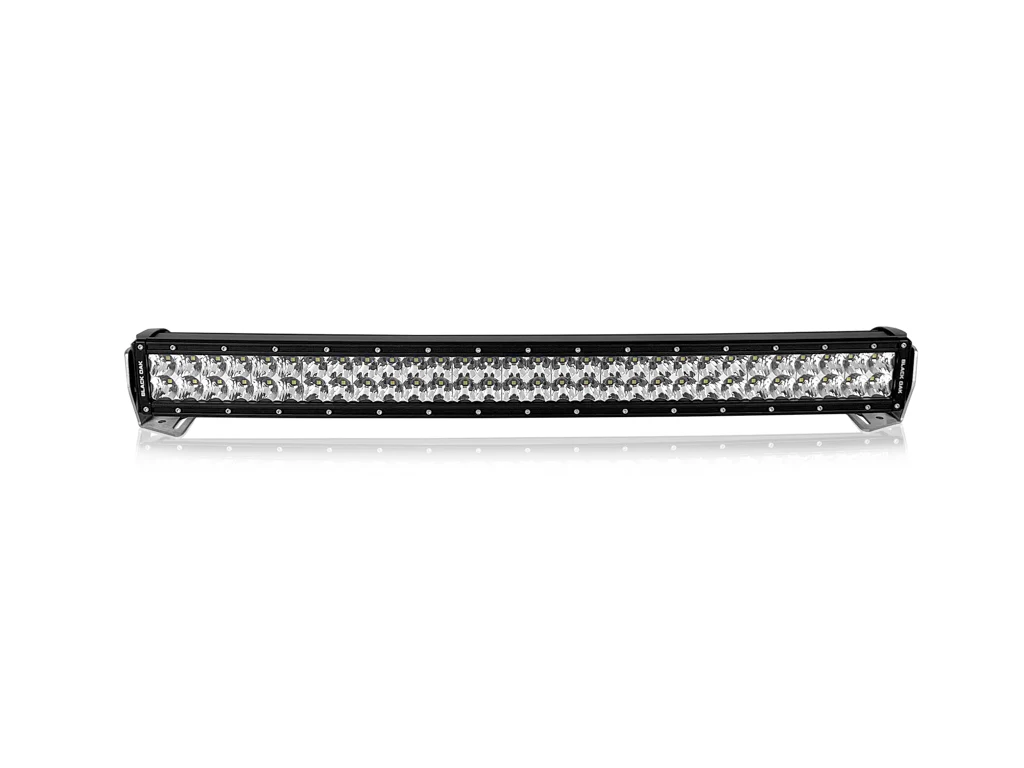

30 Inch Curved Double Row LED Light Bar – Black Housing
Expanded Coverage. Contoured Performance. Built for the Trail.
When the terrain widens and the trail demands more visibility, the 30-inch Curved Double Row LED Light Bar delivers powerful forward projection with enhanced side-to-side coverage. Designed to follow the natural contour of your vehicle, the curved profile improves peripheral illumination while maintaining a clean, aggressive look. Ideal for trucks, Jeeps, UTVs, overland builds, and work rigs, this larger platform is perfect for roof and windshield mounting applications.
Constructed with premium internal components and housed in rugged black aluminum, this light bar is engineered to withstand vibration, harsh weather, mud, and relentless off-road conditions. The double row configuration pairs high-output LEDs with precision optics to generate strong long-range distance lighting, while the curved design broadens your field of view — helping you spot obstacles sooner and drive with greater confidence after dark.
Our most popular configuration — the 5-watt high-output Combo beam — blends intense center spot projection with wide flood optics for balanced, real-world performance wherever the trail leads.
Features
-
Lifetime Warranty
-
IP69K-Rated Housing – Fully sealed against salt, spray, pressure washing, and sun exposure
-
Premium CREE® and OSRAM® LED Chips – Engineered for maximum output and longevity
-
316 Stainless Steel Mounting Brackets – Marine-grade corrosion resistance
-
Ceramic-Coated Finish – Enhanced UV stability and corrosion protection
-
Military-Grade Breather – Equalizes pressure and prevents internal moisture buildup
-
Premium Lexan® Lens – Designed to resist fading, hazing, and yellowing over time
In the Box
- (1) LED Light Bar
- Stainless Mounting Brackets and Hardware
- Complete Wiring Harness
Premium Lexan Lens + IP69K Sealed Housing
Each light is built with an optical-grade Lexan lens—twice as strong as glass and engineered to resist fading or yellowing—paired with an IP69K-rated housing that blocks out salt, spray, sun, and high-pressure water. The result is a crystal-clear, fully sealed system designed to perform for years in the harshest marine or off-road environments.
Premium OSRAM® LEDs
High-efficiency OSRAM LEDs deliver exceptional brightness, clarity, and long-term reliability—engineered for demanding marine use and sustained high-output performance.
Complete Wiring Harness Included
Every light bar comes ready to install with a pre-terminated 12-gauge wiring harness, inline fuse, relay, and switch — plus heavy-duty stainless mounting brackets for a secure, professional-grade setup right out of the box.
Ceramic-Coated, Hydrex-Sealed Construction
Finished with a corrosion-resistant ceramic coating and sealed with our Hydrex gasket system for true IP69K performance. 316 stainless bolt-in mounts provide unmatched strength and durability in saltwater or off-road environments.
Precision Beam Patterns
Choose from spot, flood, or combo configurations for the perfect lighting spread. Our advanced reflector design ensures maximum throw distance and balanced side illumination for total visibility in any situation. Pro Tip: Combo is usually the best choice — it gives you the best of both worlds, with the spot pattern in the center for distance and the flood pattern on the ends for wide coverage.
Lifetime Warranty
Enjoy complete peace of mind knowing your light is backed by our industry-leading lifetime warranty. We stand behind every product we build — if it ever fails due to workmanship or materials, we’ll repair or replace it, guaranteed.
Specs
| Feature |
5 Watt |
3 Watt |
| Power & Performance |
| Total Wattage |
300 |
180 |
| Total Amp Draw |
12.7 |
12 |
| Operating Voltage |
12-30V DC |
12-30V DC |
| Raw Lumens |
39,600 |
22,400 |
| Color Temperature |
6,000 |
6,000 |
| LED Diode Qty |
60 |
60 |
| LED Chip |
Osram |
Osram |
| Beam Pattern |
Spot or Flood |
Combo, Spot, Flood |
| Beam Angle |
Both - Combo
15° - Spot
45° - Flood |
Both - Combo
15° - Spot
45° - Flood |
| Mode |
On/Off |
On/Off |
| Dimmable? |
Yes! (Separate dimmer module Required, NOT included) |
Yes! (Separate dimmer module Required, NOT included) |
| Durability & Lifespan |
| Life Expectancy |
50,000 Hours |
50,000 Hours |
| Operating Temp |
-40° to 145° F
-40° to 62° C |
-40° to 145° F
-40° to 62° C |
| Waterproof Rating |
IP69K |
IP69K |
| Warranty |
Limited Lifetime |
Limited Lifetime |
| Guarantee |
30 Day Money Back |
31 Day Money Back |
| Wiring & Installation |
| Cord Lead From Light |
16" |
16" |
| Wire Harness Included? |
Yes |
Yes |
| Wire Harness Length |
12' |
12' |
| Wire Gauge |
12 |
12 |
| Fuse Size |
15 Amp |
15 Amp |
| Connector Type |
2 Pin Deutsch |
2 Pin Deutsch |
| General |
| Weight |
10.8 Lbs |
10.8 Lbs |
| SKU - Combo |
30CC-D5OS |
30CC-D3OS |
| SKU - Spot |
30SC-D5OS |
30SC-D3OS |
| SKU - Flood |
30FC-D5OS |
30FC-D3OS |
Size
Pattern
Instructions
Download Instructions Here.
FAQ
Frequently Asked Questions
Q: What makes this light bar different from standard off-road light bars?
A: This light bar is built with a focus on durability, performance, and long-term reliability. It features a fully sealed housing, high-quality internal components, and a rugged black aluminum construction designed to handle vibration, dust, mud, rain, and harsh off-road conditions that cheaper light bars struggle with over time.
Q: What beam patterns are available, and how do I choose the right one?
A: This light bar is available in Spot, Flood, and Combo beam patterns.
-
Spot beams provide long-range distance lighting for higher-speed driving and open terrain.
-
Flood beams deliver wide, close-range illumination ideal for crawling, work zones, or peripheral visibility.
-
Combo beams offer the best of both, combining forward distance with wide coverage — making them the most versatile option for most off-road setups.
Q: How durable is this light bar in harsh off-road conditions?
A: This light bar is fully sealed and built to withstand dust, mud, rain, vibration, and repeated impacts commonly encountered on trails, job sites, and rough terrain. It’s designed for consistent performance in real off-road environments — not just occasional weekend use.
Q: Will this light bar cause glare on my hood or windshield?
A: Proper mounting and aiming are key. During installation, we recommend temporarily powering the light to fine-tune the angle. When positioned and aimed correctly, the light delivers strong forward visibility without excessive hood or windshield glare.
Q: What voltage systems is this light bar compatible with?
A: This light bar is compatible with 10–30V DC systems, making it suitable for most 12V and 24V vehicles, including trucks, Jeeps, UTVs, side-by-sides, and work vehicles.
Q: Does this light bar include a wiring harness?
A: Yes. This light bar includes a complete wiring harness with relay, fuse, and switch, allowing for a straightforward installation right out of the box.
Q: Is this light bar energy efficient?
A: Yes. High-efficiency LEDs provide powerful output while keeping amp draw low, helping protect your electrical system during extended use — especially important when running multiple accessories.
Q: What applications is this light bar best suited for?
A: This light bar is ideal for off-road trail driving, overlanding, work sites, ranching, plowing, utility use, and general auxiliary lighting. Its compact size and strong output make it a great supplement to larger primary light bars.
Q: What warranty does this light bar include?
A: This product is part of our Pro Series 3.0 lineup and is backed by Black Oak LED’s limited lifetime warranty, providing long-term confidence in performance, durability, and support.
