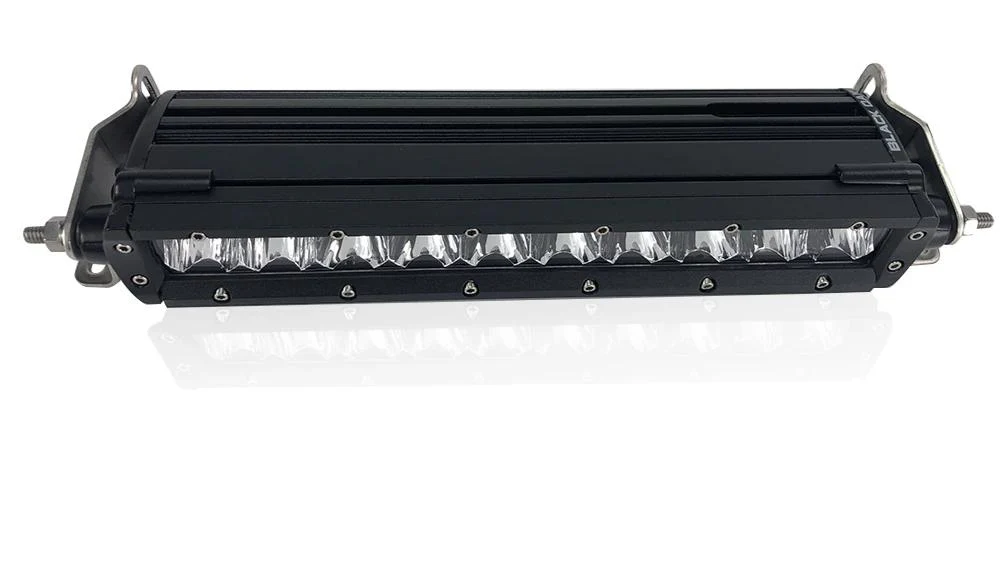

10 Inch LED Light Bar – Single Row | Spot, Flood, or Combo Optics | Pro Series 3.0 (30W / 50W)
10 Inch LED Light Bar – Single Row | Spot, Flood, or Combo Optics | Pro Series 3.0 (30W / 50W)
Overview
5W Now In Stock - Ships Next Business Day!
Rated #1 for Durability, Throw, and Power Per Inch -
This light has been upgraded to the New Pro Series 3.0, see below for all the new features.
Thin, sleek, and stealthy, the single row series 10 inch Single Row Light Bar packs an enormous amount of power into a single row of intense LED light! Using the best performing LEDs on the market, this thin LED light bar will quickly become a light you can not live without. With its IP69K rating (highest rating possible) your S-Series will last through the most intense conditions.
Activities & Uses:
- Perfect Duck boat bow light
- Spot light
- ATV or UTV bumper lights
- Front bumper truck lights
Try a 10 inch Single row light bar today and if you are not completely satisfied with the quality and performance, simply send the thin LED light bar back within 30 days for a full refund. Don't waste your time on cheap light bars that just leave you disappointed with the performance. Don't you think it's time you upgraded to a REAL light?
If you have any questions give us a call at 1-800-348-1287, and if you are looking for a slightly larger bar, check out the dual row off-road LED flood light.
The New Black Oak LED Pro Series 3.0 - 10" Single row series Includes:
- Complete Wiring Harness with fuse, relay, & switch
- Mounting brackets
- All hardware ready to install!
Upgrades and Features:
360° Ceramic Protection from UV, Salt Water and Corrosions
“One of the most popular trends lately has been ceramic coating vehicles and boats. We have since added a Baricoat ceramic coating to our lights. It is an added 3-part protection from UV, saltwater, and corrosion. You'll never have to worry about what weather you put these bars through as we made sure every aspect of these lights can hold up to any environment."
2 Stage Hydrex Seal Lock IP69
“We didn’t want to limit the introduction of the new Hydrex Seal to just the Double Rows and Pods, so we added it to our Single Rows as well. It has a 2 Stage gasket redundant waterproofing seal allowing it to have a strong, waterproof seal even after taking a beating. We wanted everything we build to be as marine grade as possible, so we made sure you won't have any issues with water intrusion.”
4x Times Stronger Dynamax Housing
“Do you ever find yourself battling some rough terrain? We made sure not to skimp out on the testing of our new Dynamax housing to make sure you would never have to worry about limiting your capabilities. As shown in the testing on our double rows, our single rows can take just as much of a beating. We made sure to prove that with using our light bars as a ramp for one of our trucks.”
More Security
“With Black Oak LED Lights, there is no room for failure. That’s why we even beefed up our bolts with stronger threads to offer better protection on our bars. We wanted to make sure there were no weak links in any part of our light bars, hence the decision to upgrade our hardware.”
Specs
| Feature | 5 Watt | 3 Watt |
|---|---|---|
| Power & Performance | ||
| Total Wattage | 50 | 30 |
| Total Amp Draw | 3.3 | 2.9 |
| Operating Voltage | 12-30V DC | 12-30V DC |
| Lumens | 6,600 | 3,700 |
| LED Diode Qty | 10 | 10 |
| LED Chip | Osram | Osram |
| Beam Pattern | Combo, Spot, Flood | Combo, Spot, Flood |
| Beam Angle | Both - Combo 15° - Spot 45° - Flood |
Both - Combo 15° - Spot 45° - Flood |
| Mode | All On | All On |
| Durability & Lifespan | ||
| Life Expectancy | 50,000 Hour | 50,000 Hour |
| Operating Temp | -40° to 145° F -40° to 62° C |
-40° to 145° F -40° to 62° C |
| Waterproof Rating | IP69K | IP69K |
| Warranty | Limited Lifetime | Limited Lifetime |
| Guarantee | 30 Day Money Back | 31 Day Money Back |
| Wiring & Installation | ||
| Cord Length From Light | 16" | 16" |
| Wire Harness Included? | Yes | Yes |
| Wire Harness Length | 12' | 12' |
| Wire Gauge | 16 | 16 |
| Fuse Size | 10 Amp | 10 Amp |
| Connector Type | 2 Pin Deutsch | 2 Pin Deutsch |
| General | ||
| Weight | 2.6 Lbs | 2.6 Lbs |
| SKU - Combo | 10C-S5OS | 10C-S3OS |
| SKU - Spot | 10S-S5OS | 10S-S3OS |
| SKU - Flood | 10F-S5OS | 10F-S3OS |
Dimensions
Video
Product Q+A
How do I know your lights are of the highest quality?
With IP68, IP69, IP69K ratings, the research has already been done for you! These standards give you clear cut pass/fail scenarios to ensure only the toughest of the tough get passed these guys, Including water, temperature, pressure, and sheer brute force.
What exactly does your warranty cover?
We are human, and thus make mistakes. If you believe your light was one of these rare occurrences due to workmanship or material failure, send it back and we will verify. Once confirmed, Black Oak LED will repair, or otherwise replace, your light free of charge.
I see 3w, 5w, and 10w LED options, what’s the difference?
You have the option between 3w Osram, 5w Osram, or 10w Cree LEDs. These are some of the brightest LEDs on the market! Don’t be misled, the 3 watts still put out an unbelievable amount of light! You choose just how bright you need it.
What is light beam spread pattern, and what is best for me?
Flood- Wide-spread light to illuminate the side and front of your rig. Perfect for those who want a wider cone of light than a spot.
Spot- Great for those who need those piercing beams of light that seem to travel forever.
Combo- Best of both worlds, the floods sit on the outside giving you the side blow-out of light while still shooting far with the Spots piercing far ahead.
