Overview

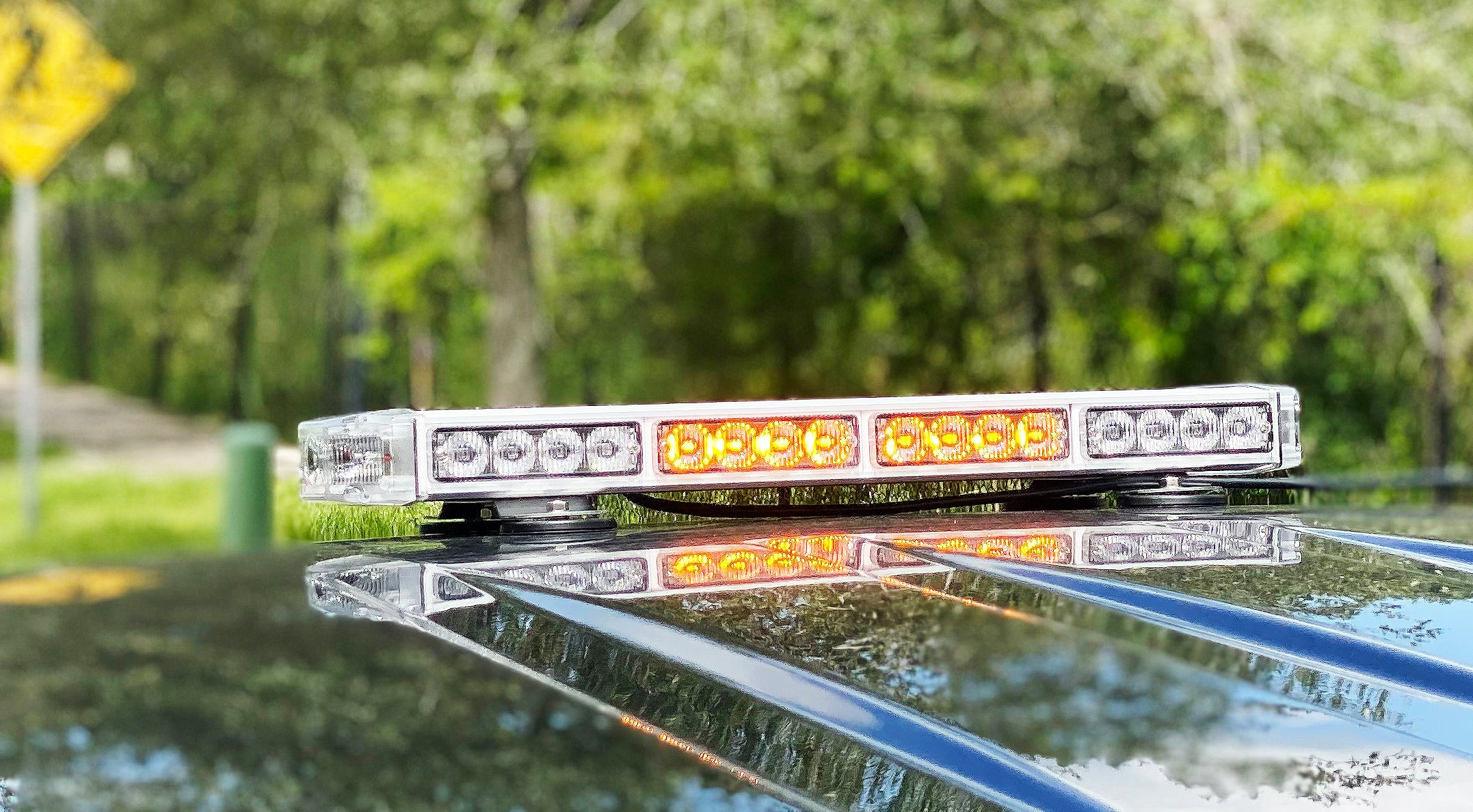

20" Mini Emergency LED Light Bar

Mini Emergency LED Light Bar with a big punch!

While the 20” bar is our smallest package in our line of Work and Emergency Lights, it still packs a powerful punch. With a total of 114 Watts of power provided by a 360 degree array of 54 3W LEDs, you will have all the brightness required to be seen in even the toughest of conditions. And the light thrives in these conditions receiving an IP67 rating. Run it through any dust storm, or rain storm mother nature can throw your way and it will come out the other side still shining, keeping you safe the entire time.

The housing unit is aluminum with heavy duty lighting pods around the perimeter that house the LEDs and control boards. It mounts to the vehicle using magnets at the end of each light leg allowing set up to be quick and convenient. It is powered by a cigarette plug adapter on a long power cord. Run the cord through the nearest door and plug it into your vehicle and everyone will see you. The plug houses the control switches so you can change the flash pattern with the flip of a switch while remaining in the car.

Features

54 - 3W LEDs
15 Flash Patterns with Memory
360 degree visibility
Magnetic Mounting
12V Input Power
20”L x 5 ¾”W x 3”H
IP67 Waterproof Rating
Satisfies SAE J845 Standards
Satisfies SAE J595 Standards

Thanks to the progress of LED technology, you will have visibility greater than 1 mile, while pulling minimal amps from your battery. LEDs also have a life expectancy of over 100,000 hours meaning your light will keep shining as long as you’re on the job. Available in 13 color arrangements using White, Red, Blue, Amber, and Green LEDS, we offer something to fit anyone in need of a warning or work safety light for the top of their vehicle.

Includes:

20” Light Bar
Power Plug with Controls for Cigarette Lighter
12’ Power Cord
4 Magnets and Mounting Legs
2 Year Warranty

Activities & Uses:

- First Responders
- Security
- Construction
- Tow Trucks
- ATV/UTV

Color Options

White Only
Red Only
Red and White
Blue Only
Blue and White
Red and Blue
Amber Only
Amber and White
Green Only
Green and Amber
Red and Amber
Blue and Amber

In The Box

20” Light Bar
Power Plug with Controls for Cigarette Lighter
12’ Power Cord
4 Magnets and Mounting Legs

Product Q+A

How do I know your lights are of the highest quality?

With IP67, IP68, IP69, IP69K ratings, the research has already been done for you! These standards give you clear cut pass/fail scenarios to ensure only the toughest of the tough get passed these guys, Including water, temperature, pressure, and sheer brute force.

What exactly does your warranty cover?

We are human, and thus make mistakes. If you believe your light was one of these rare occurrences due to workmanship or material failure, send it back and we will verify. Once confirmed, Black Oak LED will repair, or otherwise replace, your light free of charge.

How long will my package take to arrive?

Lights ship out right from our facility within 48 hours of your purchase. If this is not possible we will contact you as soon as possible to discuss the best option for you. Custom brackets may be shipped separately from one of our distributors and may incur additional lead time. International rates may apply to custom bracket purchases depending on your location.

What is light beam spread pattern, and what is best for me?

TIR Optics- Best for use day and night with a wide spread to illuminate the side and front of your rig. Added visibility for oncoming traffic.
